How ESAPI Plate Weight Affects Performance in Body Armor

Introduction

The effectiveness of personal protective equipment, particularly body armor, hinges on a delicate balance. While stopping a projectile is paramount, the ESAPI plate weight plays a crucial role in an operator’s ability to perform, endure, and ultimately, survive.

This isn’t just about carrying extra pounds; it’s about how those pounds translate into tangible effects on tactical mobility, armor fatigue, and combat effectiveness. Understanding this relationship is key for anyone relying on body armor plates for safety.

ESAPI Plates: What Are They?

These plates represent a significant step up in ballistic protection level compared to their predecessors, the SAPI (Small Arms Protective Inserts) plates.

Built to counter more formidable ballistic threats, including certain armor-piercing rounds, ESAPI plates are engineered for superior defense. They are typically constructed from advanced materials like monolithic ceramics (such as boron carbide or silicon carbide) bonded to a composite backing, often made of ultra-high-molecular-weight polyethylene (UHMWPE). This combination allows the plate to fracture and decelerate a projectile with the ceramic face, while the backing material helps absorb residual energy and catch fragments.

The primary distinction between ESAPI and SAPI plates lies in their protective capabilities and, consequently, their weight. ESAPI plates are designed to meet more rigorous military testing protocols, offering protection often equated to or exceeding NIJ Level IV standards, which test against armor-piercing rifle rounds. This enhanced protection inherently means ESAPI plates are generally denser and heavier than SAPI plates of the same size.

The Significance of Plate Weight in Your Loadout

When discussing protective gear weight, every ounce matters. ESAPI plates, due to their enhanced protective qualities, contribute significantly to the overall plate carrier weight.

A single medium-sized ESAPI plate can weigh around 5.5 pounds (approximately 2.5 kg), meaning a pair adds about 11 pounds (5 kg) even before considering the carrier itself or other essential gear in a soldier’s loadout. While this might not sound excessive in isolation, it’s a substantial addition to an already burdened operator.

The weight of body armor plates directly influences:

• Overall personal protective equipment (PPE) burden.
• The physical strain experienced by the wearer.
• The cumulative effect on long-term health and operational readiness.

Impact on Mobility and Agility: Moving Under Load

One of the most immediate effects of increased ESAPI plate weight is on an operator’s tactical mobility and agility. Added weight directly translates to:

• Slower Movement: Running, sprinting, and changing directions become more laborious.
• Reduced Agility: Navigating obstacles, crouching, climbing, and assuming firing positions quickly can be compromised.
• Increased Effort for Common Tasks: Even routine movements require more energy.

Consider Real-World Scenarios: An officer needing to swiftly pursue a suspect or a soldier maneuvering under fire. Heavier weight armor plates can mean the difference between effectively responding to a threat and becoming a slower, more vulnerable target. The bulk of the plates, combined with their weight, can also restrict the range of motion, particularly in the upper body, potentially affecting weapon handling.

Armor Fatigue and Endurance: The Long Haul

Carrying substantial weight, especially for extended periods, inevitably leads to armor fatigue and diminished operational endurance. The human body is a machine, and like any machine, it wears down under constant strain.

Heavy plates contribute to:

• Increased energy expenditure: The body works harder to perform any action.
• Faster onset of physical exhaustion: Muscles tire more quickly, and cardiovascular strain increases.
• Potential for musculoskeletal injuries: Long-term wear of heavy gear can strain joints and muscles.

This fatigue isn’t just physical. It can also lead to decreased cognitive function, slower reaction times, and reduced situational awareness, which are all critical factors in high-stress environments. Maintaining combat effectiveness over time becomes a significant challenge when battling constant physical drain.

The Inherent Trade-Offs: Protection vs. Performance

The core dilemma in selecting body armor revolves around body armor trade-offs. Does one prioritize maximum ballistic protection level at the cost of performance, or opt for lightweight armor plates that enhance mobility but might offer less coverage or stop fewer types of threats?

• Heavier Plates: Generally offer higher levels of protection against more potent threats. However, they can significantly reduce mobility, increase fatigue, and potentially make the wearer a slower target.
• Lighter Plates: Improve tactical mobility, reduce fatigue, and enhance body armor performance in dynamic situations. The trade-off might be a lower protection rating or reduced coverage area.

There’s no single right answer; the “best” choice depends heavily on the anticipated threat level, mission profile, duration of wear, and individual physical capabilities.

Material Science: How Plate Composition Affects Weight

The materials used in body armor plates are central to their weight and protective capabilities. The primary contenders include:

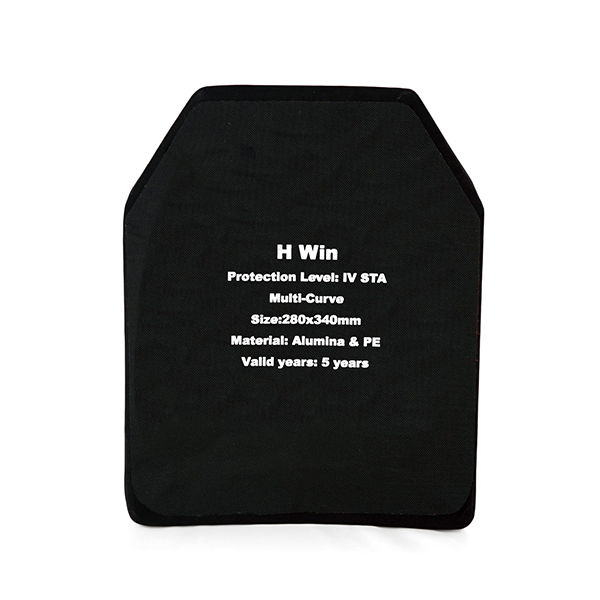

• Ceramic Plates (e.g., Boron Carbide, Alumina, Silicon Carbide): These are common in ESAPI and other high-level plates. Ceramics are extremely hard and effective at shattering projectiles. Boron carbide is one of the lightest and hardest ceramics, but is also more expensive. Alumina (Aluminum Oxide) is heavier but more cost-effective. The choice between ceramic vs steel plates (or ceramic vs. PE) often comes down to balancing weight, protection, and cost.
• Polyethylene (UHMWPE) Plates: These are significantly lighter than ceramic or steel plates for a given level of protection against certain threats (typically up to NIJ Level III or special rifle threats). They achieve protection by “catching” and slowing the bullet within their fibrous layers. For ESAPI-level (NIJ Level IV equivalent) threats, PE is usually part of a composite system with ceramic.
• Steel Plates: Steel armor is generally the heaviest option, but is also durable and often the most affordable. It can handle multiple hits in close proximity but produces more spall (bullet fragments) unless coated.

The weight-to-protection ratio is a critical metric. Manufacturers continually research and develop new materials and hybrid designs to create lightweight armor plates without compromising NIJ protection standards.

ESAPI Plate Sizes and Approximate Weights (Military Issue)

Understanding typical weights can help contextualize the load. These are general figures and can vary by manufacturer and specific generation:

Size	Dimensions (approx.)	Military ESAPI Weight (per plate)
Extra Small	7.25″ x 11.5″ (184×292 mm)	~3.75 lbs (1.70 kg)
Small	8.75″ x 11.75″ (222×298 mm)	~4.6 lbs (2.08 kg)
Medium	9.5″ x 12.5″ (241×318 mm)	~5.5 lbs (2.50 kg)
Large	10.25″ x 13.5″ (260×337 mm)	~6.3 lbs (2.85 kg)
Extra Large	11″ x 14.0″ (280×356 mm)	~7.2 lbs (3.25 kg)

NIJ Standards and Weight Considerations

The National Institute of Justice (NIJ) provides widely recognized standards for body armor. While ESAPI plates are primarily a military designation, commercial plates often reference NIJ standards to indicate their protective capabilities.

• NIJ Standard-0101.06 (and the newer 0101.07): This standard classifies armor into different levels (IIA, II, IIIA, III, IV) based on the types of ammunition it can defeat.
• NIJ Level IV: This is the highest rating for personal body armor under the NIJ standard and is tested to stop a single armor-piercing rifle round (specifically, .30-06 M2 AP). ESAPI plate protection is often compared to NIJ Level IV.

Weight itself is not a direct criterion for NIJ certification; the focus is on ballistic resistance and backface deformation (the dent on the body side of the armor after impact). However, achieving higher protection levels, especially Level IV, often necessitates materials and construction techniques that result in heavier plates. Manufacturers strive to meet these NIJ protection standards while minimizing ESAPI plate weight.

Choosing the Right Balance: Practical Advice for Optimal Performance

Selecting the appropriate body armor plates requires a careful assessment of your specific needs and operational context. The goal is to optimize both protection and body armor performance.

• Mission Type:
  • Extended Patrols/Reconnaissance: Lightweight armor plates might be prioritized to enhance operational endurance and reduce armor fatigue.
  • Direct Action/Close Quarters Combat (CQC): Higher protection levels (like ESAPI) might be crucial, but consider plate cuts (e.g., SAPI, Shooter’s Cut, Swimmer’s Cut) that offer a balance between coverage and tactical mobility for weapon manipulation.
  • Vehicle Operations/Static Security: ESAPI plate weight may be less of a concern, allowing for maximum protection.
• Role:
  • Law Enforcement: Threat levels can vary drastically. Officers may choose different plates based on daily duties versus SWAT operations.
  • Military Personnel: Role (e.g., infantry, special operations, support) and anticipated threats dictate armor choices, often guided by unit SOPs.
  • Civilians: For personal protection, understanding local laws and realistic threat assessments is key. NIJ Level IIIA or III plates are often sufficient and lighter than Level IV/ESAPI.
• Physical Conditioning: An individual’s strength and endurance will influence how well they can manage heavier plates.
• Plate Carrier: A well-designed plate carrier weight distribution system can significantly mitigate the perceived burden of heavier plates.

Ultimately, enhancing combat effectiveness means finding the sweet spot where you have adequate protection without being unduly hampered by your gear.

Conclusion

The ESAPI plate weight is a critical factor that profoundly influences an operator’s performance. While these plates offer an exceptional ballistic protection level, the added mass impacts tactical mobility, accelerates armor fatigue, and can affect overall combat effectiveness.

The choice of armor is a constant navigation of body armor trade-offs. The industry continues to innovate, pushing the boundaries of material science to develop lightweight armor plates that don’t sacrifice protection. Understanding the implications of protective gear weight allows individuals and organizations to make informed decisions, optimizing for both safety and the ability to perform effectively in demanding situations. The goal remains to equip operators with personal protective equipment (PPE) that enhances survivability in every aspect.

Frequently Asked Questions (FAQs)

1. Are ESAPI plates heavier than SAPI plates?

ESAPI plates are heavier than SAPI plates of the same size. This is because ESAPI plates are designed to offer a higher ballistic protection level, specifically against more potent threats, including some armor-piercing rounds. This increased protection typically requires denser and thicker materials, contributing to the greater ESAPI plate weight.

2. How much do ESAPI plates typically weigh?

The weight varies by size. For example, a medium military-issue ESAPI plate weighs approximately 5.5 pounds (2.50 kg). A pair would add about 11 pounds (5 kg) to the plate carrier weight, excluding the carrier itself.

3. Can the weight of body armor really affect my shooting accuracy?

While direct aiming precision might not be significantly affected in static scenarios, the increased ESAPI plate weight and bulk can lead to faster armor fatigue, which can indirectly degrade marksmanship over time. More directly, it can slow down target acquisition, transitions between targets, and the ability to quickly assume stable firing positions, impacting overall combat effectiveness.

4. Are there lighter alternatives to ESAPI plates that offer similar protection?

Manufacturers are constantly working on developing lightweight armor plates. While achieving true ESAPI-level (often equated to NIJ Level IV) protection typically involves heavier ceramic-based designs, some advanced composite plates or newer material technologies aim to reduce weight. However, there’s often a cost implication, with lighter materials that offer the same protection level usually being more expensive. Always verify protection ratings against NIJ protection standards or relevant military specifications.
