Level 4 Ceramic Plates

Level 4 ceramic armor plates provide maximum protection against high-velocity, armor-piercing rounds. H WIN operates a complete in-house production line in China, offering OEM and wholesale services with fast delivery.

• Superior Ceramic Protection: Made with high-strength ceramic materials to effectively stop armor-piercing rounds.
• Lightweight: Level 4 ceramic plates offer a balance of strong protection and reduced weight, enhancing mobility.
• Durability: Ceramic materials are resistant to wear and can handle extreme conditions without compromising performance.
• Multi-Hit Resistance: Level 4 ceramic plates are designed to absorb multiple impacts without losing integrity.
• Heat Resistance: Ceramic materials maintain their protective qualities even under high-temperature conditions.

Level 4 ceramic plates are designed to provide maximum protection against high-velocity, armor-piercing rounds, including .30 caliber AP. Made with advanced ceramic materials, level 4 ceramic plates offer a lightweight yet durable solution for military, law enforcement, and security personnel in high-risk environments.

Engineered for multi-hit resistance, they maintain their integrity under multiple impacts, ensuring reliable defense against some of the most powerful projectiles. The ceramic composite core is lightweight yet exceptionally strong, absorbing and dispersing the energy from multiple threats without compromising performance.

H WIN’s Level 4 ballistic plates are engineered by combining a high-hardness ceramic strike face with an Ultra High Molecular Weight Polyethylene (UHMWPE) backing layer, achieving a balance of armor-piercing protection, reduced weight, and enhanced multi-hit performance. This advanced material pairing is widely used in professional military and tactical armor systems.

Why Combine Ceramic and UHMWPE?

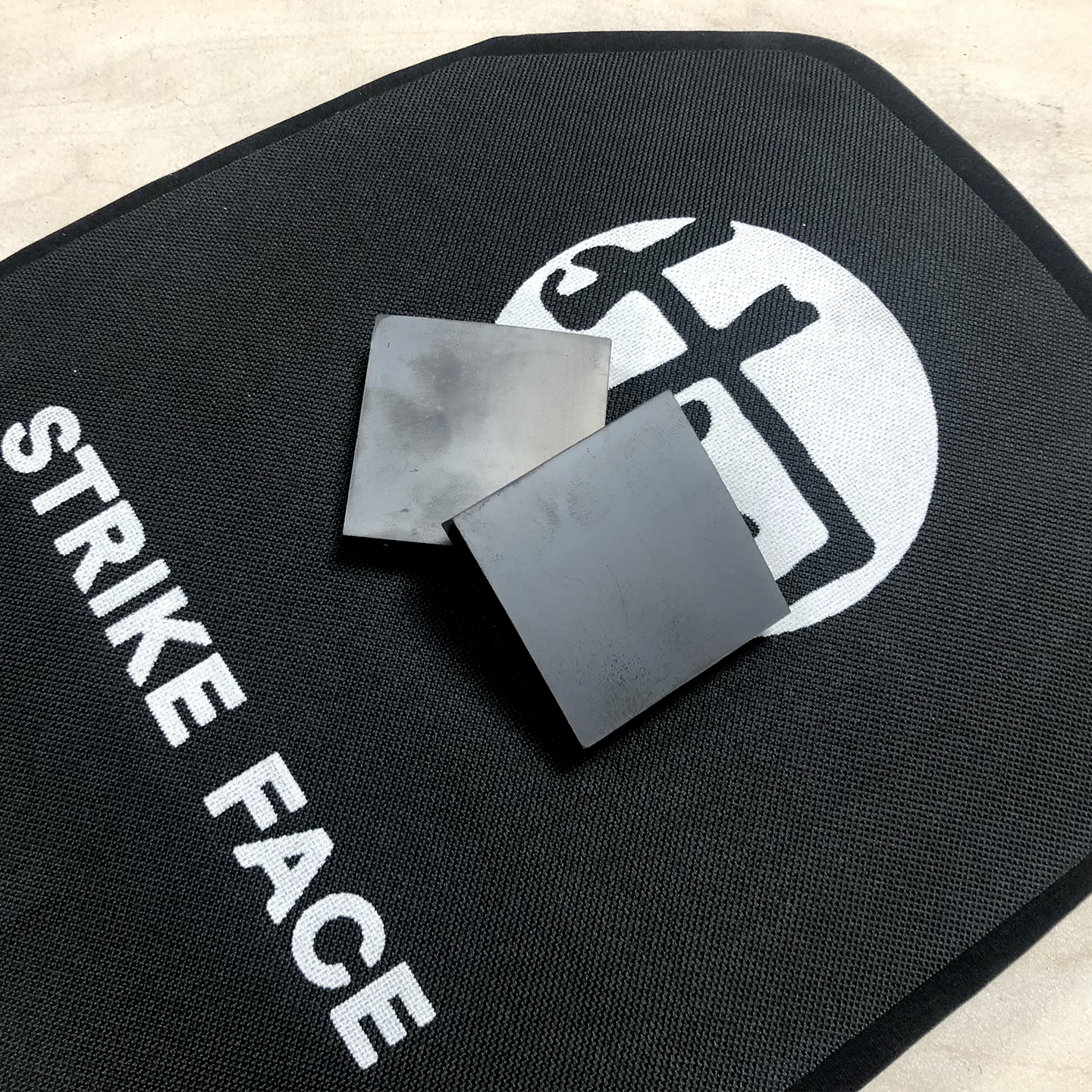

• Ceramic (e.g., Alumina or Silicon Carbide)
  Provides the initial line of defense by breaking and flattening incoming armor-piercing rounds. However, ceramic is brittle—it tends to crack and lose integrity after one or two impacts.

• UHMWPE Backing
  Compensates for this weakness by absorbing the residual kinetic energy and containing ceramic fragmentation. It offers high energy absorption, excellent flexibility, and is much lighter than steel or other metals.

This type of plate that not only stops high-velocity AP rounds, but also maintains protection after multiple hits, something monolithic ceramic cannot do alone.

Key Advantages of H WIN’s Level 4 ceramic plates:

• NIJ Level IV Rated – Stops .30-06 M2 AP rounds and similar threats.
• Lightweight and Wearable – Suitable for long-duration use without causing fatigue.
• Multi-Hit Capability – Thanks to UHMWPE backing, the plate retains structure even after ceramic damage.
• Environmental Resistance – Performs well in heat, moisture, and field abuse.

H WIN uses advanced lamination and hot-press technology to bond the ceramic face securely to the polyethylene backing, forming a stable, field-ready armor solution trusted by military, police, and VIP security teams worldwide.

We have strong scientific research strength and complete production line, which can meet various order needs and achieve fast delivery.

We are committed to providing better protection, we are constantly innovating in all aspects, and have a number of certifications and patents to give our customers peace of mind.

We provide perfect after-sales service, and our products enjoy a five-year manufacturer’s warranty, so that our customers can buy with confidence.

We support OEM orders with flexible options in size, cut, curvature, and coating. All plates are NIJ-certified to ensure quality, and consistency.

At H WIN, we offer both Single Curve and Multi Curve Level 4 plates, each designed to meet different user needs.

Single Curve Plates

Single curve plates feature a uniform curve from top to bottom. They provide solid ballistic protection with a simpler shape, making them more affordable and easier to manufacture. Ideal for users prioritizing cost-effectiveness and straightforward fit. Single curve plates work well with most standard plate carriers and body armor setups.

• Generally lighter in weight
• Easier to insert and remove from carriers
• Cost-efficient option for bulk orders

Multi Curve Plates

Multi curve plates have a more complex, ergonomic shape that contours to the body’s natural curves, including side and shoulder areas. This design improves comfort, mobility, and weight distribution during extended wear. Multi curve plates are preferred by military, law enforcement, and tactical users who require maximum comfort without compromising protection.

• Superior fit and comfort for extended use
• Better weight distribution, reducing fatigue
• Enhanced mobility during operations

Which Should You Choose?

• If you need a budget-friendly, reliable plate with straightforward fit, Single Curve is a solid choice.
• For professional users who wear armor for long periods or engage in dynamic activities, Multi Curve plates provide unmatched comfort and ergonomic benefits.
